Engineered with advanced segmental winding and bonding technology, our FRP/GRP spray pipes are specialized high-performance solutions for industrial desulfurization systems. This innovative process enables seamless nozzle integration to eliminate flange connection risks, while the pipes deliver superior corrosion resistance, smooth inner walls for reduced energy consumption, maintenance-free operation, and long service life across power, chemical, papermaking, and municipal water treatment projects.
| Quantity: | |
|---|---|

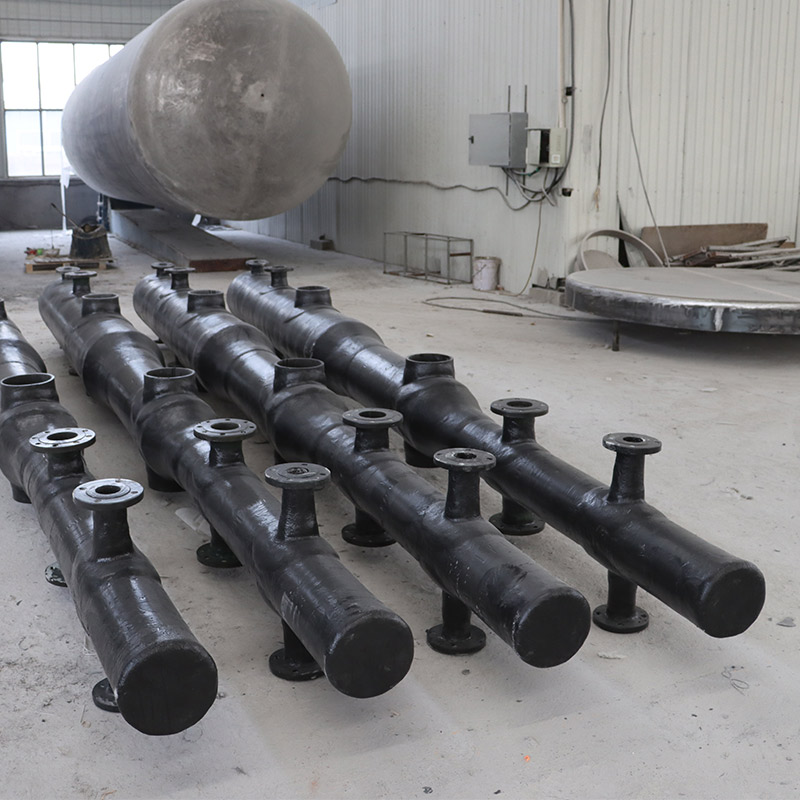

Our winding-bonded FRP GRP spray pipe is a high-performance fluid distribution solution specifically engineered for industrial desulfurization systems. Also known as FRP sprinkler pipe, this advanced fiberglass-reinforced plastic product delivers exceptional corrosion resistance, hydraulic efficiency, and long-term reliability in harsh operating environments. Manufactured using state-of-the-art segmental winding and bonding technology, our GRP spray pipe for desulfurization eliminates traditional flange connections between slurry nozzles and pipe sections, creating a seamless, leak-free system that significantly reduces maintenance requirements and operational downtime.
The innovative winding bonding process ensures that the pipe and nozzle form an integrated monolithic structure, providing superior mechanical strength and chemical resistance compared to conventional assembled systems. Our fiberglass reinforced plastic spray pipe features a precision-engineered three-layer structure that optimizes performance for desulfurization applications, where pipes are continuously exposed to acidic slurries, high temperatures, and abrasive particles. With a proven track record in power plants, chemical facilities, and industrial processing plants worldwide, our winding-bonded FRP spray pipes have become the preferred choice for industrial operators seeking durable, cost-effective fluid handling solutions.
Our corrosion-resistant FRP spray pipe is inherently resistant to a wide range of chemicals, acids, and alkalis commonly found in desulfurization processes. The specialized inner lining incorporates wear-resistant fillers that provide excellent protection against abrasive slurry particles, extending service life far beyond that of metallic alternatives.
The smooth inner surface of our low-energy consumption FRP pipe minimizes fluid friction and pressure drop, reducing pumping energy requirements by up to 30% compared to steel pipes. This translates to significant long-term energy savings and lower operational costs for industrial facilities.
The revolutionary winding bonding process spray pipe design eliminates flanged connections, the most common point of failure in traditional spray systems. This monolithic construction ensures zero leakage, reduces installation time by 40%, and eliminates the need for regular flange maintenance and gasket replacement.
With a service life exceeding 20 years, minimal maintenance requirements, and low energy consumption, our long-service-life desulfurization pipe offers the lowest total cost of ownership in the industry. No corrosion protection coatings or regular inspections are needed, further reducing operational expenses.
FRP material is approximately 1/4 the weight of steel, making our convenient transportation FRP pipe easier to handle, transport, and install without heavy lifting equipment. This results in faster project completion and lower installation costs for industrial contractors.
Parameter | Specification |
Material | Fiberglass Reinforced Plastic (FRP/GRP) |
Manufacturing Process | Segmental winding and bonding |
Inner Layer Structure | Three-layer composite design |
Outer Surface Layer | Glass fiber surface felt + resin + wear-resistant filler (1:57:38 mass ratio), 0.5mm thickness |
Middle Corrosion Layer | Glass fiber surface felt + resin foam, resin content >90%, 0.5mm thickness |
Intermediate Structural Layer | Glass fiber surface felt + resin, resin content 70-80%, 2.0mm thickness |
Reinforcement Layer | Glass fiber chopped strand mat + resin |
Operating Temperature | -40°C to 120°C |
Operating Pressure | 0.5 MPa to 4.0 MPa |
Standard Diameters | DN50 to DN1200 |
Standard Lengths | 1m to 12m |
Connection Method | Winding bonding (nozzle to pipe) |
Our desulfurization system spray pipe finds extensive application across multiple industrial sectors where reliable fluid distribution in corrosive environments is critical:

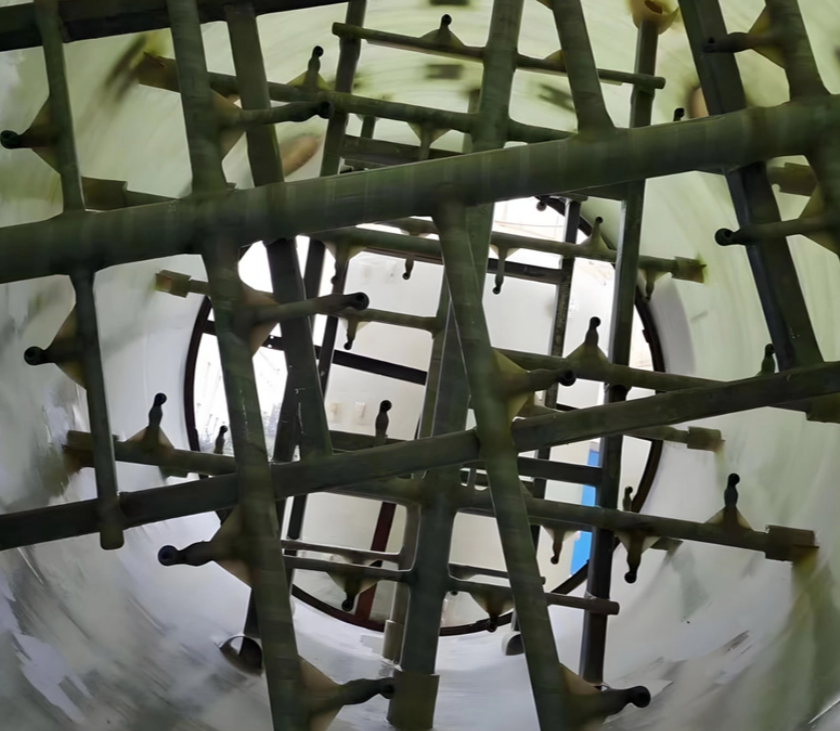

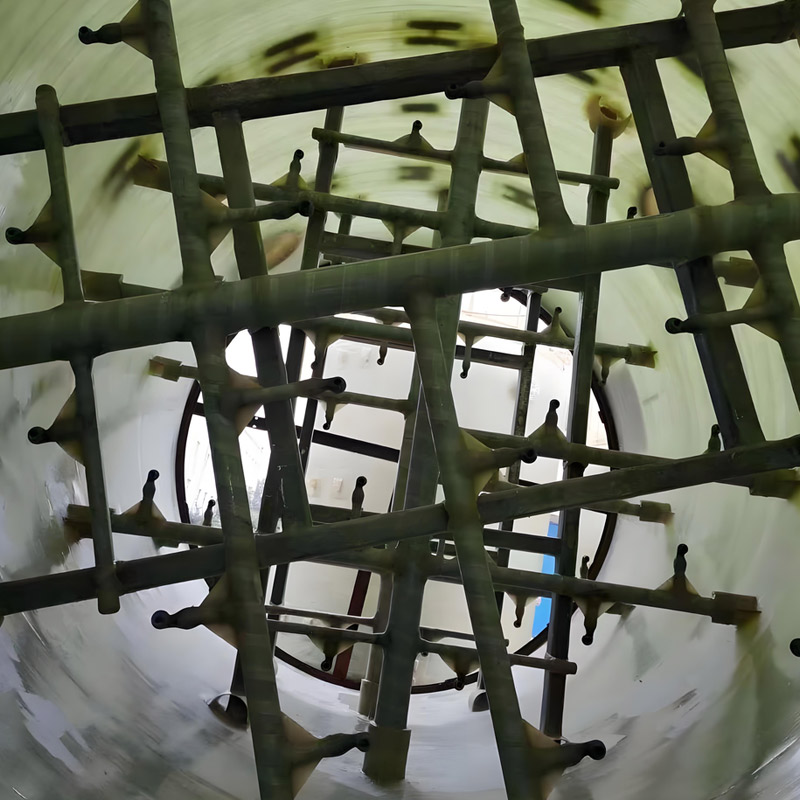

Power plant flue gas desulfurization (FGD) systems
Petroleum refinery desulfurization units
Chemical processing plants
Pulp and paper mills
Industrial wastewater treatment facilities
Seawater desalination plants
Urban water supply and drainage systems
Gas transmission pipelines
All our winding-bonded FRP GRP spray pipes are manufactured in strict accordance with international quality standards and industry specifications. Our production facilities are certified to ISO 9001:2015, and every pipe undergoes rigorous quality control testing before shipment, including hydrostatic pressure testing, dimensional inspection, and material composition analysis. We provide comprehensive documentation with each delivery, including material test reports, quality certificates, and installation guidelines. Our experienced technical team offers on-site support and training to ensure proper installation and optimal performance of our products.

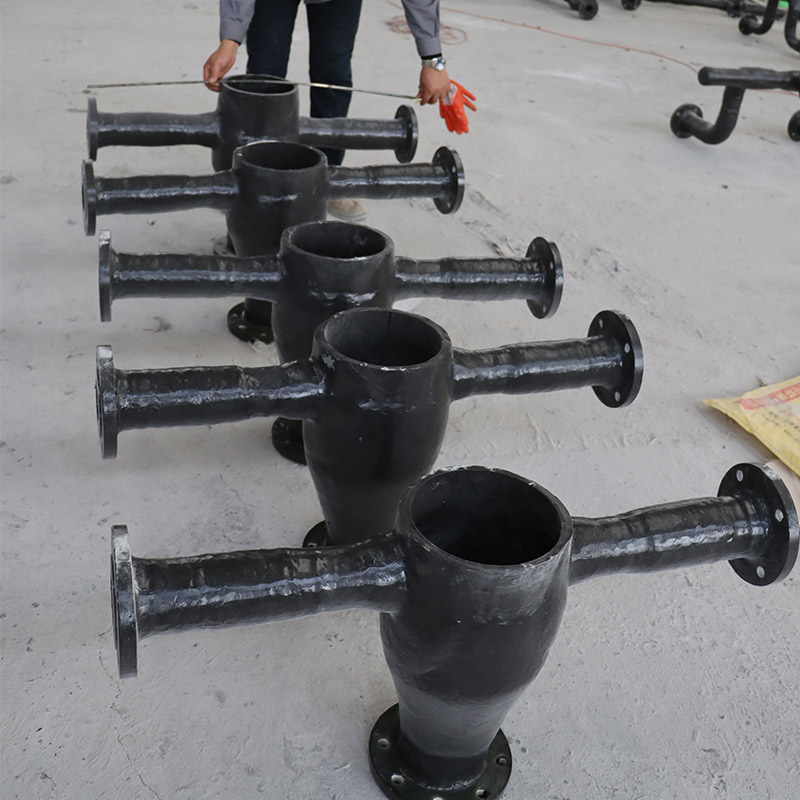

Winding-bonded FRP spray pipes use an integrated manufacturing process that bonds nozzles directly to the pipe body, creating a seamless, monolithic structure. Traditional flanged pipes use bolted connections with gaskets, which are prone to leakage, corrosion, and failure over time. Winding-bonded pipes offer superior reliability, lower maintenance, and longer service life.
Yes, our FRP spray pipes are designed to operate continuously at temperatures up to 120°C, making them suitable for most industrial desulfurization applications. For higher temperature requirements, we can provide custom-engineered solutions with specialized resin systems.
Under normal operating conditions, our winding-bonded FRP spray pipes have a service life of 20-30 years, which is 3-5 times longer than carbon steel pipes and 2-3 times longer than stainless steel pipes in corrosive desulfurization environments.
Yes, we can manufacture FRP spray pipes in custom diameters, lengths, and nozzle configurations to meet specific project requirements. Our engineering team works closely with industrial operators to design optimized solutions for their unique applications.
